basic serial armored vehicle

CREATED ON THE BASE OF COMBAT EXPERIENCE

UAT-Tisa

The armored fighting vehicle is designed to transport personnel of defence units - 4 (including 2 crew members), perform low-risk tactical missions, for rapid deployment of mobile groups

NATO AEP STANAG 4569 Level 1 protection
bulletproof protection against armor-piercing incendiary bullets with a 5.45 or 7.62 mm cartridge at a distance of 30 m
mine protection against the detonation of explosive devices with a TNT equivalent of up to 3 kg under the wheel and 2 (two) anti-personnel grenades of the DM 51 type under the center of the bottom.

UAT-TISA

Main parameters:
Сhassis ......................
TOYOTA LC79 with winch
Engine ........................
diesel inline 6-cylinder - 4.2L 1 HZ
Weight ........................
Curb weight - 4600±200 кg, Gross weight - 5500±200 кg
Dimensions (mm) ....................................
5500 х 2250 х 2400 mm
Maximum speed .........
130 кm/h
Power ........................
132 hp
Tires ..........................
265/70 R17, 285/75 R16 RunFlat
The vehicle has level 1 protection according to the NATO AEP STANAG 4569 standard

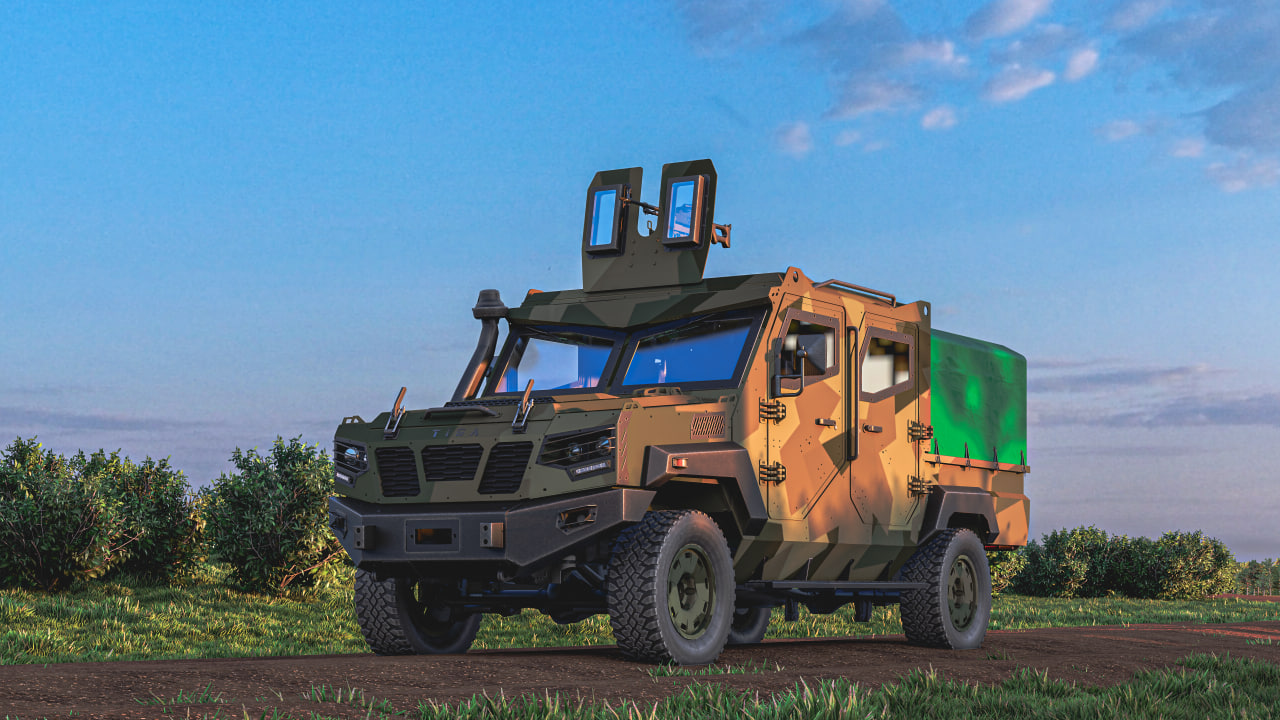

The roof of the vehicle can be equipped with a rotating mount for a machine gun with a protective screen.
The advantage of the UAT-TISA is its low weight and optimal dimensions, which ensure maximum invisibility of the crew's actions.
The vehicle is based on the TOYOTA LC79 chassis. UAT-TISA has high dynamic qualities, improved cross-country ability and maneuverability in difficult conditions, the ability to cover long distances at a high average speed.
The presented sample demonstrates the results of UAT-TISA tests to confirm ballistic resistance. Antiballistic, fragment and mine protection in accordance with NATO AEP STANAG 4569 Level 1.

The UAT-TISA design provides for the separation of the crew and troops from the engine and transmission compartment and fuel tanks.
EQUIPMENT:
air conditioning, cabin heater, modern filter and ventilation system
night vision devices with information displayed on a screen in front of the driver can be installed
a VHF signal radio station, satellite navigation and electronic warfare equipment, and a place for machine gun mounting can be installed
The crew and personnel of the landing force are safely separated from the engine and transmission compartment and fuel tanks, and the workplaces are designed to preserve the lives of the fighters in the event of an explosive device being detonated.

The armor protection is designed to save lives during the detonation of explosive devices with a TNT equivalent of up to 3 kg under the wheel and two DM-51 anti-personnel grenades under the center of the bottom.

The car is made from components and chassis of the "TOYOTA" LC79, as well as components and mechanisms from other manufacturers.

2+2

crew

130

Кm/h

132 hp

power
Main parameters:

Weight

4600±200 кg - curb weight

5500±200 кg - gross weight

Dimensions:

Length

5500 mm

Width

2250 mm

Height

2400 mm

Engine:

6 - cylinder - 4.2L 1HZ

diesel inline

Power

132 hp

Maximum torque

285 N*m (2200 rpm)

Transmission

5-speed, manual

Main (additional) tank capacity

90±5 (90±5) l

Mobility:

Maximum speed on the highway

130 кm/h

Maximum speed (soil road)

100 кm/h

-

Acceleration to 60 km/h

14±2 s

Braking distance at 60 km/h

14,0±1,0 s

Transmission

-

Manual

Differential lock

-

front, rear

Ground clearance

-

220±10 mm

Tires

-

265/70 R17; 285/75 R16, Run-Flat

Fording depth (overcoming water obstacles)

-

0,7 m

Lift angle and banking angle

-

30°, 17°

ARMAMENT:

The vehicle is equipped with:

  • advanced electronic warfare systems,
  • night vision systems.

‍

The roof of the vehicle can be equipped with a rotating mount for a machine gun with a protective screen.

DESIGN AND PROTECTION:

The armored hull provides:

  • all-round crew protection;
  • The vehicle has level 1 protection according to the NATO AEP STANAG 4569 standard;

The armored capsule has:

  • anti-fragmentation lining made of material that provides protection against free-form fragments weighing 1.1 g, moving at a speed of 500 m/s.

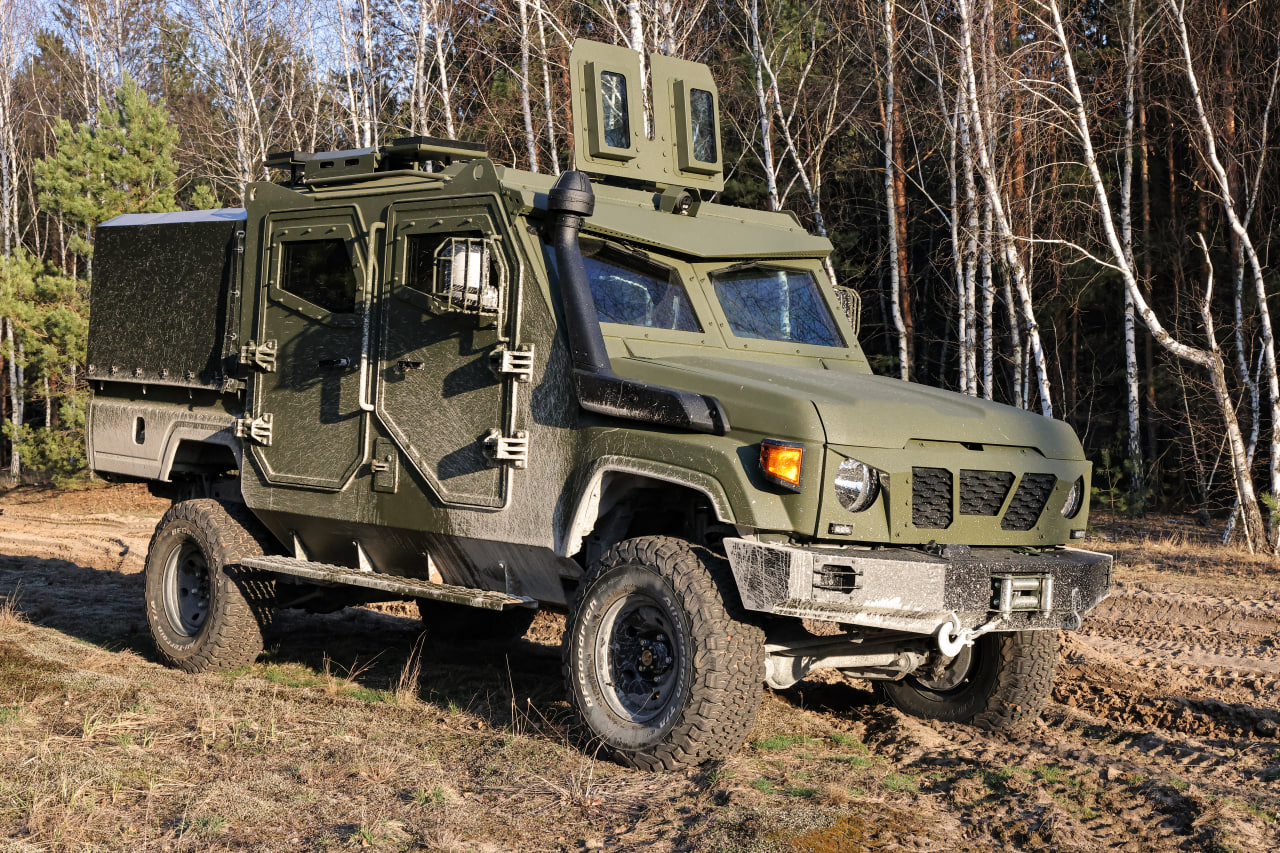

  • The front side doors open in the direction of vehicle movement, while the rear doors open in the opposite direction. This 180° opening provides additional armor protection for the doors when getting out of the vehicle and entering the battlefield.
  • The inside of the vehicles is covered with anti-shrapnel lining, which protects the crew and internal equipment from free-form fragments. Ballistic glass provides a level of protection not lower than that of the corresponding armored vehicle hull projections.
CHASSIS:

The UAT-TISA armored vehicle received:

  • upgraded suspension, in which the main components of the chassis of the base chassis "TOYOTA" LC79 have been replaced:
  • springs, shock absorbers, springs;
  • anti-roll bar;
  • stabilizer struts and more.

The vehicle's axles have additional reinforced protection. UAT-TISA has high dynamic qualities, improved cross-country ability and maneuverability in difficult conditions, the ability to cover long distances at a high average speed.

On the basis of the Tisa armored vehicle, it is possible to develop an operational and technical vehicle for the needs of the State Emergency Service (different emergency services).
UAT-TISA

Armored vehicle created on the base of combat experience
